Sand Making Machine

Sand Making Machine

Capacity: 10-585 t/h

Rotate speed: 200–530 r/min

Diameter: 240–850 mm

Applied material: pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone.

  • Dolomite
  • Calcite
  • Granite
  • Limestone
  • Quartz

The Handling Materials of Sand Making Machine:

Sand making machine can be used to handle some materials such as pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, construction waste, etc.

Sand Making Machine Material Processing

The Introduction and Function of Sand Making Machine:

Sand maker is mainly used for artificial sand making. In addition, it is suitable for the crushing and plastic of soft, hard and super hard materials, which is widely applied for all kinds of ores, cement, refractory material and bauxite clinker. Especially for carborundum, silicon carbide sintered bauxite, beautiful sand as well as other hard, super hard and abrasive resistant materials; it has higher yield and efficiency than other types of crushers.

Sand Making Machine

The Working Principle of Sand Making Machine:

The material from feeding hopper enters into sand making machine, which can be divided into two parts by sub-feeder, one part enters the high-speed rotating impeller from the middle place of impact crusher, and then the impeller can be rapidly accelerated whose speed can reach up to hundreds of times of the gravitational acceleration, and the material must be far away from channel of the impeller in a speed of 60-70m/s. those materials which is being crushed in the cabinet so many times can reach the purpose of fine crushing at last. And those crushed material is discharged from discharging part. In this crushing operation, the material is crushed by each other, which is not connecting with the metal, which can decrease the pollution and then prolong the service life of mining machine.

Sand Making Machine Working Principle of Dynamic Figure

The Performance Characteristics of Sand Making Machine:

1 Simple structure, high efficiency and energy saving.

2 Convenient installation and repair, low operation cost.

3 High crushing efficiency, coarse and fine crushing function.

4 Strong uncrushed materials through ability, less affected by the moisture content of materials, the water content is up to 8%.

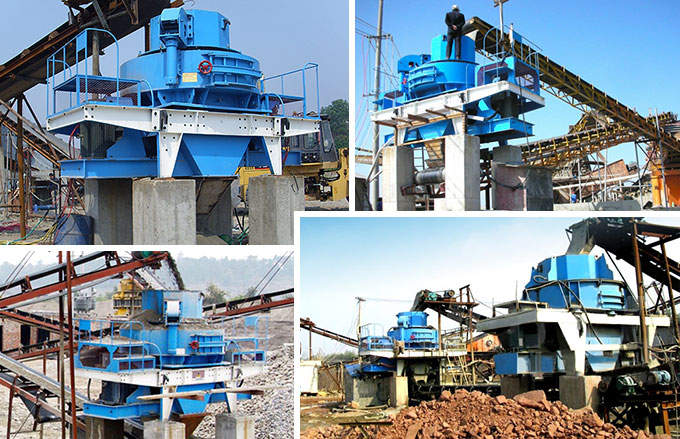

Sand Making Machine Production Site

5 It can crush medium and super hard materials (such as corundum, sintered bauxite, etc.).

6 Excellent grain shape, cubic shape, little iron pollution.

7 The materials lining in the impeller and vortex dynamic crushing cavity has greatly reduced the cost of wear parts and maintenance workload.

Sand Making Machine Technical Data

speed of
HX-06 35 2P   37-55KW 2000-3000 12-30 2500×1620×2600
HX-07 45 4P   55-75KW 1500-2500 25-55 2700×1760×2800
HX-09 50 4P   110-150KW 1200-2000 55-100 3900×2000×3070
HX-10 60 4P   150-180KW 1000-1700 100-160 4600×2350×3450
HX-06 35 12-30
HX-07 45 25-55
HX-09 50 55-100
HX-10 60 100-160
